POSSIBLE UVC GERMICIDAL USE - SEE DOCUMENT DOWNLOAD VERY BOTTOM OF THIS PAGE FOR DETAILS !
Look for our item number N010-004 UVC Intensity Labels also for use in Germicidal Applications.

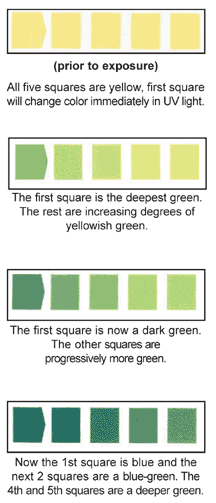

CON-TROL-CURE® UV FASTCHECK™ STRIPS are simple, reliable, and easy to use indicators of accumulated UV light dosage. They are the first product that can be used to determine levels of UV dose with a simple, visual inspection due to the 5 separate color changing zones. Each of the 5 zones begin to change color after a specific amount of UV dose has been received. First the "1" zone begins turning from yellow to blue. Then each subsequent color zone starts to change colors when its specific chemistry has received the proper amount of UV to activate its color change.
The versatility of this unique UV measurement tool allows users to measure a significant range of UV doses. CON-TROL-CURE® UV FASTCHECK™ STRIPS measure UVA/B doses from 0mJ/cm to greater than 5,000mJ(5J)/cm. As well, due to their paper-thin profile and thermal stability, they can be used in all applications where a radiometer is not possible, including: Web printing, Sheet Fed printing, Exposure Verification of exposed products, 3-D curing, and personal UV exposure level testing.
The CON-TROL-CURE® UV FASTCHECK™ STRIPS' clearly identifiable color change enables users to visually differentiate the dose differences. To measure the dose even more precisely, use a spectrophotometer to record color change by the CON-TROL-CURE® UV FASTCHECK™ STRIPS. NOTE: For best results, observe color change immediately after exposure to UV light as label may change/fade over time.
As well, a comparative dose chart for the CON-TROL-CURE® UV FASTCHECK™ STRIPS is included in each package. With this chart, each tested CON-TROL-CURE® UV FASTCHECK™ STRIP can be visually correlated to the millijoule range of UV energy that each color pattern represents. (NOTE: Cannot be cross-compared against actual label using RM200QC or other similar instrument. Chart is a reproduction reference guide not a calibration standard)
Made from the same exclusive material, the New UV Intensity Labels™ (N010-005) have the same color changing principle as the Strips, but they have only 1 color changing square. Click here for more information.
UV FastCheck™ Strips Are most responsive to UVB - UVA energy 315nm - 385nm (Not for use with UV LED 390nm or higher) For UVC applications, please review documentation regarding unique response characteristics.
Accurate visual determination of UV dose made possible
Monitor UV dose in difficult-to-access curing environments
Detect UV lamp degradation and equipment failures
Provide the user with periodic assurance that their UV source is performing to expectations
Greater rate of color change provides clearer, more precise UV dose determination
Determine the dose profile in the 3D curing chambers or across wide webs to ensure even cure
Measure the dose of sunlight in outdoor curing applications
Evaluate and compare multiple UV light sources
UV FastCheck™ Strips are available in packages 200 Strips (10 sheets of 20 adhesive backed Strips per sheet)
UV FastCheck™ Strips Dimensions: 1/2H x 2-1/8W (13mm x 54mm)
UV FastCheck™ Chart shows 10 steps at 30mJ, 50mJ, 75mJ, 100mJ, 150mJ 200mJ, 400mJ, 600mJ, 800mJ 1000mJ.
Additional comparative dose levels charts, are available for purchase. (custom order)
!! NEW COLOR ANALYSIS TOOL !!
We are happy to introduce a significantly lower cost instrument for more detailed measurement, storage, and analysis of your color change results, X-RITE™ RM200QC Spectrocolorimeter
Shelf life is currently rated at 12 months minimum. (From date of invoice)
14 - 17 months from lot# date.
Usage well beyond current rating is possible with proper storage.
Store in the original packaging out of direct light and away from excessive heat or moisture.
Store package flat, not vertical.
Ideal storage location is within a cool and dry location like a drawer.
Great for school science projects and science fairs, as they are simple to use and are able to demonstrate the levels of Ultraviolet intensity.
This product is no longer in stock
Availability date: 10/14/2016
